G4 Isokinetic Sampler

Industrial Emissions TCR Tecora
1
2
3
4
5
6
7
8
9
10
11

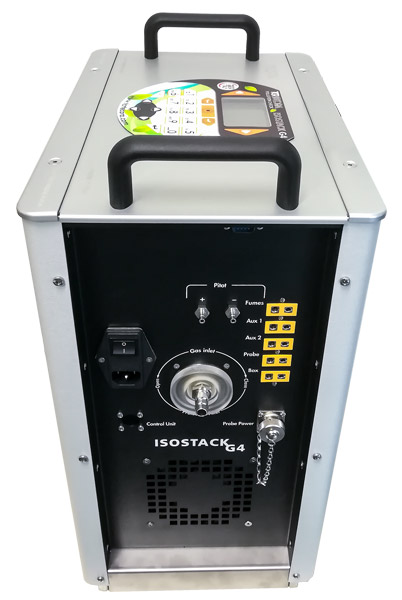

G4 Isokinetic Sampler TCR Tecora
1

Thermcouples Inlet

2

Differential pressure sensors

3

Gas Inlet

4

Probe power supply

5

Power supply

6

RS 232

7

Ergonomic handles

8

Keyboard display

9

USB connector

10

Volumetric counter

11

Gas Outlet

G4 Isokinetic Sampler

G4 Isokinetic Sampler TCR Tecora
G4 Isokinetic Sampler TCR Tecora

In accordance with

UNI EN 13284
UNI EN ISO 16911-1
US EPA M5, M17
ISO 12141:2002

G4 is the 4th generation isokinetic sampler of TCR Tecora

G4 Isokinetic Sampler is the result of a long tradition of isokinetic sampler, started in 80s with Isostack B6.

The solution offered with this new instrument can be summarized in 4 main characteristics:

  • Easy to use
  • Reliability
  • Accuracy
  • Sampling Quality (QA/QC).

Easy to use

G4 offers two different configuration to meet different type of use.
It is available in a “all in one” and in a “split” version.
The first is dedicated to whom wish to reduce the costs and have the maximum portability.
The second to whom wish to carry on stack platform only the control panel and leave on plant floor the pump unit.

Reability

G4 uses quality components which grant reliability in time.
Last generation electronics, which assures high immunity from electromagnetic noisy and designed to work even in severe ambient conditions
 .

Accuracy

High precision pressure sensor with thermal drift compensation.
Thermocouple calibration curve following ITS 90 standard.

Sampling Quality (QA/QC)

Calibration curve on 5 points for each sensor and acquired width. Correction curve on 5 points programmable by customer for each sensor.
Allows to adjust deviations eventually found during re-calibration.
Volume measurement redundancy now coming from a mass and a volume meter.

Main Features

  • In accordance with UNI EN13284-1, EN 10169 and USEPA M5, M17
  • Fast isokinetic control atany stack condition
  • In-stack temperature andvelocity measurement
  • USB interface to download data
  • Wide Graphic Display
  • High precision pressurecalibrator, with thermal driftcompensation device
  • Wide library withspecifications of the mostcommon ducts
  • Data logger function withsaving data on USB key(supplied with the instrument)
  • Reduced maintenance
  • Available with ISO 17025 accredited laboratory certificate

Technical Features

G4 Table of Features
G4 Codes Table - TCR Tecora
G4 Isokinetic Sampler Schema TCR Tecora
